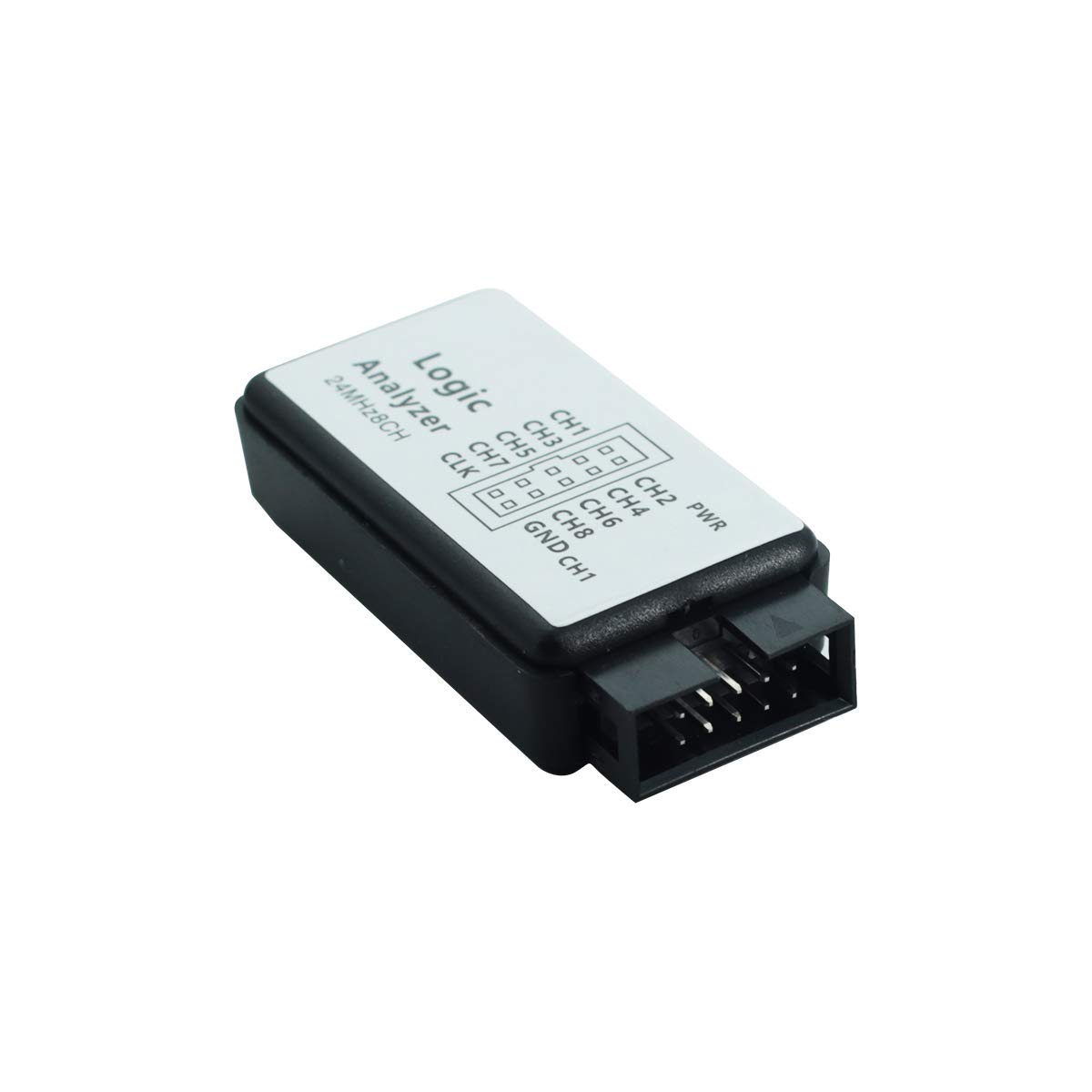

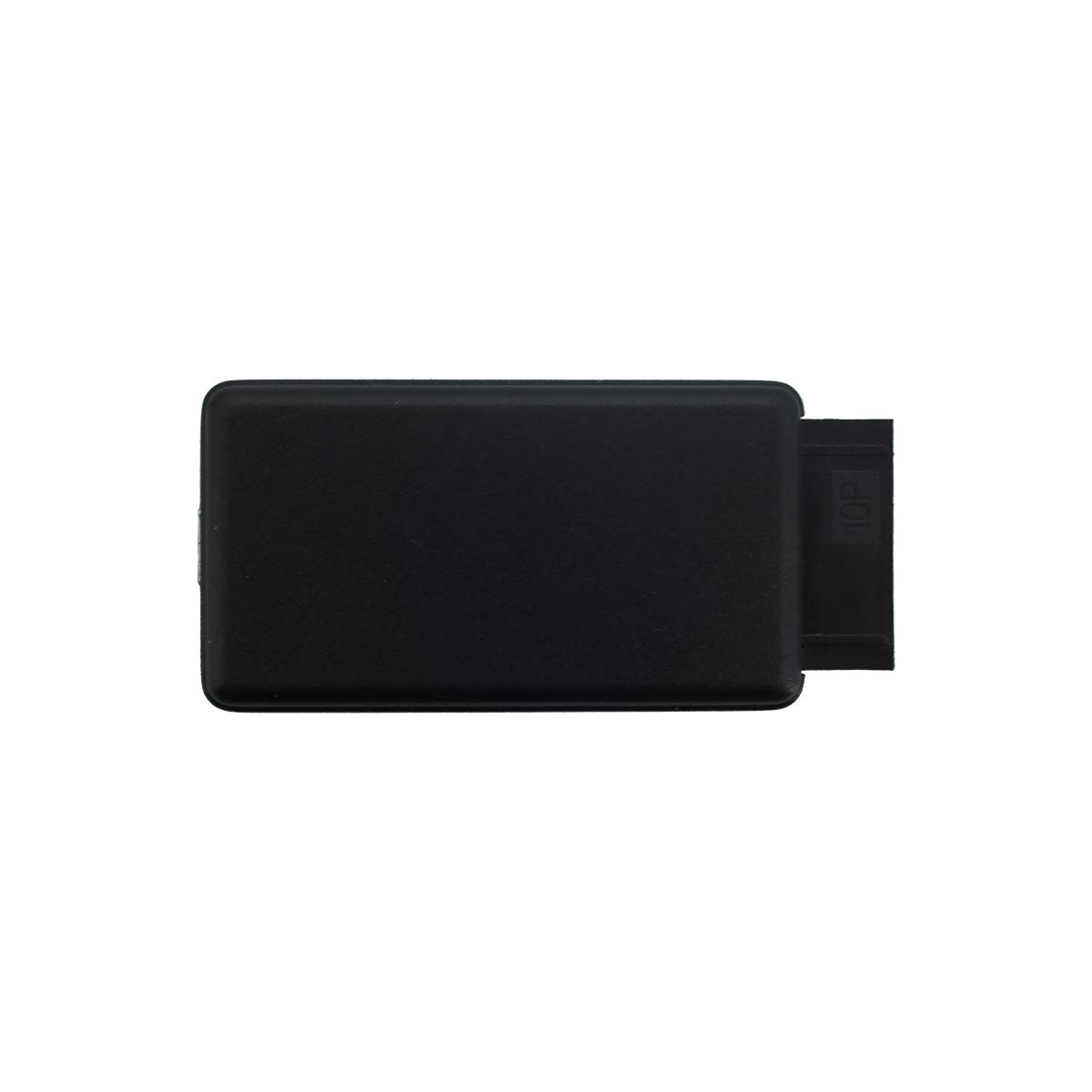

DEVMO 24MHz 8CH 24MHz 8 Channel USB Logic Analyzer Device with EMI Ferrite Ring USB Cable UART IIC SPI Debug Compatible with Ar-duino ARM FPGA M100 SCM

Product description
Digital Channels: 8
Voltage range:
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).
Material:Metal,Plastic。Large quantity sample collection, strong and powerful.
Equipped with overpressure protection, for safety working.
Suitable for single chip development,ARM system development,FPGA development.
Packing Included:
1 * Logic Analyser
1 * USB Cable
1 * Dupont Cable

Package Dimensions ‏ : ‎ 4.72 x 3.98 x 1.26 inches; 2.4 ounces
Item model number ‏ : ‎ DEVMO24MHz 8CH 24
Date First Available ‏ : ‎ September 5, 2020
Manufacturer ‏ : ‎ DEVMO
ASIN ‏ : ‎ B08HK6RCKT
Best Sellers Rank: #864,987 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #111 in Logic Analyzers
Customer Reviews: 3.9 3.9 out of 5 stars 4 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
★The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions; 8-channel.
★Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
★Input voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V.
★Input Impedance: 1Mohm || 10pF (typical, approximate); Crystal: +/-20ppm, 24MHz.
★UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
