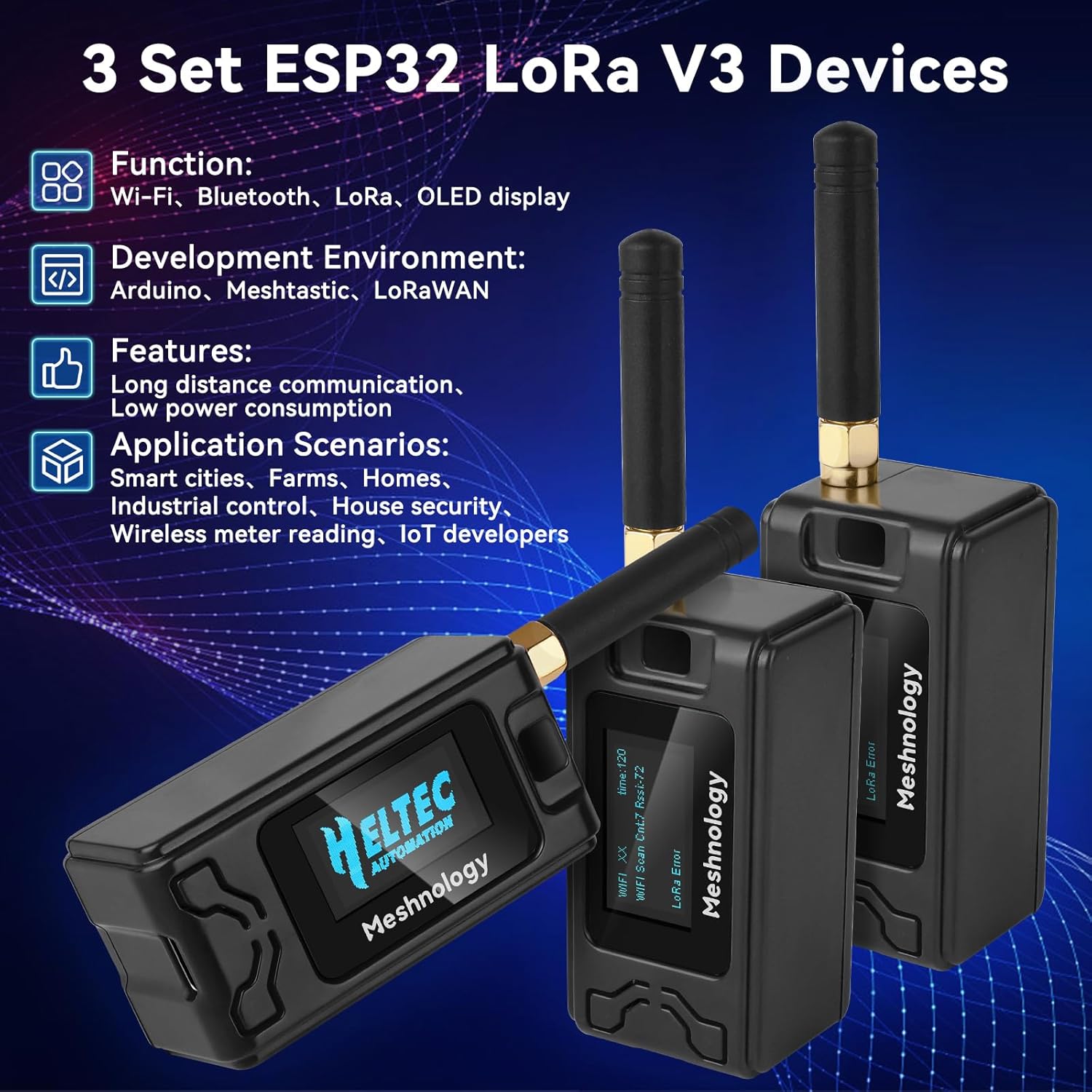

3 Pack ESP 32 Lo Ra V3 Development Board + 1100mAh Battery + Protect Case Set – with 915MHz Antenna and SX 1262 Lo Ra V3 Devices for Mesh Tastic Ar duino Lo Rawan IoT (N30 Version, Black)
$8.99
Related Products
Product description
3 Set (ESP32 LoRa V3 Development Board + 1100mAh Battery + Protect Case)

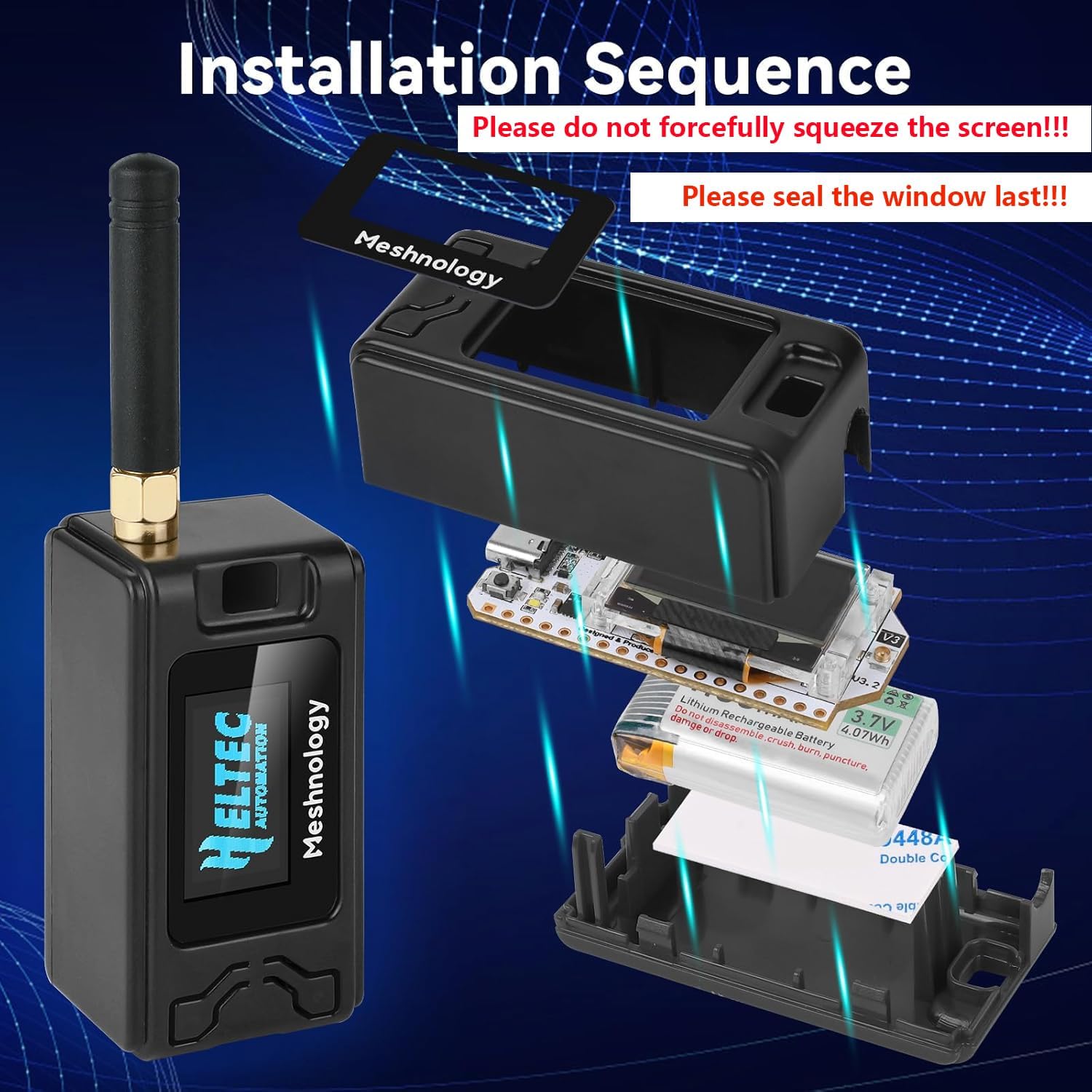

Please do not forcefully squeeze the screen!!! ~~Please seal the windows last!!!
Specifications of ESP32 LoRa V3 Development Board:
Master Chip ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor) LoRa Node Chip SX1262 USB to Serial Chip CP2102 Frequency 470~510MHz, 863~928MHz Max. TX Power 21±1dBm Max. Receiving sensitivity -134dBm@SF12 BW=125KHz Wi-Fi 802.11 b/g/n, up to 150Mbps Bluetooth Bluetooth 5 (LE) Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. Memory 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash Interface Type-C USB; 2*1.25 lithium battery interface; LoRa ANT; 2*18*2.54 Header Pin Battery 3.7V lithium battery power supply and charging Operating Temperature -20 ~ 70 ℃ Dimensions 50.2 * 25.5* 10.2 mm
Can the onboard 2.4GHz antenna be replaced?
The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for 2.4GHz wireless signals.
Can ESP32’s WiFi and Bluetooth be used at the same time?
No, the WiFi LoRa 32 don’t have an external PSRAM.
What development methods does it support?
-Arduino;
-Micro Python;
-Platform.io;
-Espressif IDE.
We strongly recommend using Arduino. We provide complete LoRaWAN code for ESP32 Arduino framework.
Meshtastic screen has a digital front-end issue?
It’s caused by the meshtastic setting. Changing the default screen to SSD1306 can solve the problem.
The specific steps are as follows:
“Radio configuration”→”Display”→”Override OLED auto-detect”→”SSD1306”
Advanced Dual-Core Performance: Unlock the full potential of your IoT projects with our 3-piece set featuring the ESP32 LoRa development board, powered by a robust dual-core ESP32-S3FN8 processor. With a clock speed of up to 240 MHz and a five-stage pipeline architecture, this board delivers high performance for complex applications and devices.
Exceptional Connectivity: Experience seamless connectivity with integrated WiFi, LoRa, and Bluetooth capabilities. Our development board comes equipped with a dedicated 2.4GHz metal spring antenna for Wi-Fi and Bluetooth, along with an U.FL interface specifically reserved for LoRa use, ensuring stable and long-range wireless communication.
Powerful Battery Management: This development board includes an 1100mAh battery and an onboard SH1.25-2 battery connector, featuring a comprehensive lithium battery management system. Benefit from intelligent charge and discharge management, overcharge protection, battery level detection, and automatic switching between USB and battery power for uninterrupted operation.
Enhanced User Interface: With a 0.96-inch 128×64 dot matrix OLED display, our development board is perfect for showcasing debugging information and battery status. The Type-C USB interface ensures complete voltage regulation, ESD protection, short circuit protection, and RF shielding, enhancing safety and reliability for all your projects.
Developer-Friendly Design: Created with developers in mind, this board supports the Ar duino development environment and includes an integrated CP2102 USB-to-serial chip for effortless programming and debugging. Coupled with excellent RF circuit design and low power consumption, it stands out as a perfect choice for scalable IoT solutions. Plus, our specially designed Meshtastic LoRa V3 case ensures compatibility and protection for your ESP32 LoRa V3 board, antenna, and 1100mAh battery (or batterie size smaller than 952540mm), making it an essential companion for your electronic endeavors.
13 reviews for 3 Pack ESP 32 Lo Ra V3 Development Board + 1100mAh Battery + Protect Case Set – with 915MHz Antenna and SX 1262 Lo Ra V3 Devices for Mesh Tastic Ar duino Lo Rawan IoT (N30 Version, Black)
Add a review
$8.99
Kindle Customer –
Great value and good usable radio
they arrived quickly and it was slightly difficult to connect the antenna to the chassis. My fingers were too thick. However, they work great and the small size makes them easily supported. Of the two radios, someone put the case together on one and it took some judicious prying to open the case. Do not put the cases together until you have connected the battery and antenna to the chassis and fitted it into the case. The control buttons may require pressing across a wider part of the switch to make proper contact. The case feels as if it might break if dropped onto something hard. It is clearly not designed for ruggedness. I only had to run it for 4 hours or so and it did that. I did not try to “run it until it died.”
Andy H –
Good introduction to meshtastic but this is a bit of a battery hog.
A good starter to Lorawan and meshtastic. Almost everything you need to get started – and then you’ll want more.These were my first foray into Meshtastic and set up was pretty easy. I wasn’t sure how much pressure was needed for the antenna pigtail but keep pressing hard until you hit it click into place.The cases are a little finicky to snap together and I’ve had them come apart a couple of times, especially when they’ve been dropped but the pieces inside have stayed resilient and working.As they’re ESP32 based, they are fairly battery hungry getting about 6 hours from 95% of usage.I have had some stability issues when running with the network mode enabled and the device just stops responding and pretty sure it reboots as the uptime drops. Using the networking so I can interrogate the battery status through Home Assistant to turn the charger on and off with a separate charger.The device is in the 2nd floor room by a window and my nearest nodes are 2km away all ? hops away. The signal states it is bad.Next node is 12k away at 1 hop away but being close to a main city, I can hop to nodes 37km away at 6 hopsI’ve had to reprogram the name of the device multiple times as I find it keeps reverting back to the meshastic name (which might be why I see so many other devices with the generic meshtastic names too)
Christopher Chaparro –
Great item
I’m happy to finally have it. It took a while to setup but found a useful YouTube video and now it’s working perfectly. I’m glad to have this in case of any emergency or signal loss.
Michael Kevin Summers –
Great Project & Addition to Doomsday Preparation!
Easy to assemble, great little project! A little difficulty with flashing the first one only due to my computer and necessary updates afterwards it was a breeze. We had a Wonderful time utilizing the units and educating ourselves. Loads of fun and a Great addition to when (not if) the grid goes down. Highly Recommend!
Andrew Burger –
Great ESP32 LoRa Kit for Meshtastic or DIY IOT Projects
I picked up this set of two ESP32 LoRa boards and wasn’t disappointed. Everything arrived as shown—each kit includes the board, battery, antenna, and case, and it was surprisingly easy to assemble. I had them up and running with Meshtastic in no time.The build feels solid for the price, and the battery holds about 6–8 hours of runtime, which is decent for experimenting. There were no issues with flashing or setup, and the mesh network works reliably over the range I tested. Great value and perfect for hobbyists getting into LoRa-based IoT setups. Five stars.
Teri –
It works but there are display issues
This is not a ready to go on the air board. You will need to go to the Meshtastic web site to and follow the setup instructions to select and flash the Meshtastic software on to the board. This is not difficult to do if you have some basic computer skills.The issue with this board is with the display not working after you flash the Meshtastic program to the board. The display works fine out of the box but, quits working after you flash the program. Despite the display issue, the radio works fine and can be used without the display. This has been a problem with the board I received and on another my son purchased. So far, Heltec/Meshtastic has not addressed this common issue.
Cindy Lou Who –
Comes with no instructions. And other problems
This comes with no instructions at all. I went on Youtube and found them by this company. But that was very limited. The cord they sent to charge does not fit at all. Bluetooth did not work. More trouble than what I paid for it. Will be sending it back.
Trismegistus –
Bit tricky to setup, but overall great product
Bit tricky to piece together and snap antenna on, but overall great product!
Ade –
Easy build node. The antenna is very small and therefore for short distance use only. Flashed fine with Meshtastic firmware and paired with my phone. Have connected it to a larger antenna for a better signal.
RPA –
Boitier parfaitement adapté à l’Heltec 32 V3. Prévoir une batterie LiPo 802540 dont le logement est également parfaitement ajusté. Il est bien fini et d’apparence solide. Une sortie USB sur le dessus aurait été un plus car si un câble de recharge est branché, on ne peut le poser droit. Satisfait de cet achat.
Nicholas –
Per il prezzo non è male. Ho però qualche appunto:il primo “problema” è che non è ben chiaro come aprire questo case una volta chiuso. Funziona ad incastro, ma non c’è un modo semplice per aprirlo. Infilando un piccolo cacciavite a testa piatta tra le fessure si può forzare l’apertura senza romperlo, però mi sembra comunque molto scomodo.Il secondo “problema” è che il case è un po’ piccolo, e può contenere solo batterie da 1000mah o meno. Il che lo rende un po’ poco performante. Per usarlo con la mia, ho dovuto fare un buco a lato e attaccarla esternamente col bio adesivo.Detto questo, buon rapporto qualità prezzo.
Kurtis –
IMPORTANT TO KNOW…These Heltec V3’s work great and are currently operating as they should. However, there are a few things you should know. When you first try to flash them with meshtastic, they need to be in “boot mode”. Hold the power button while plugging into the usb on your pc. If they don’t show up in the devices you will need to download a driver from the web (search for it) and manually load the driver the way you would any hardware. Second, they do not work well when they are on and within BLE (bluetooth) range of each other. They will act buggy, constantly reboot and will be hard to stay connected in the app. Use one at a time when they are within 100′ of each other. Third, they will also act buggy when they are in a heavy wifi signal or bluetooth environment. They do not handle high traffic bluetooth and wifi devices. Keep this in mind before you get too frustrated, they should work good otherwise.
Cliente Amazon –
Llegó, según las indicaciones.Viene sin montar, pero es muy sencillo, todo correcto.Funcionando los dos con Meshtastic sin ningun problema.Duración de bateria correcta.
